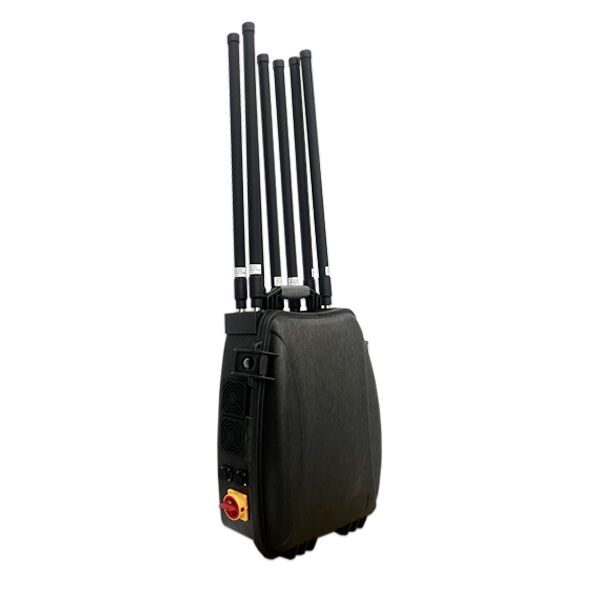

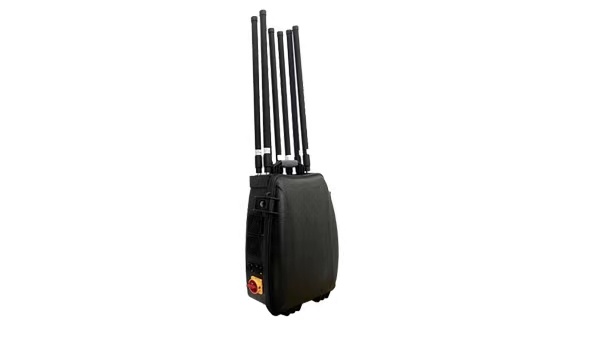

SWT-BB6 is a high-power omnidirectional backpack, with built-in lithium battery, easy to operate, and can achieve single frequency control. The device uses narrowband jamming technology and radio frequency suppression technology to disconnect the UAV from the remote control and force them to fly back. After the UAVs are controlled, the image transmission channels are cut off, preventing them from transmitting video, aerial photos and receiving any commands from controllers on the ground, thus protecting key areas and prevent leakage of privacy.
Indexes and Parameters
Operating frequency band/power | 433MHz power 50W |
860-930MHz power: 50W | |
1555-1620MHz power: 50W | |
2400-2500MHz power: 50W | |
5150-5350MHz power: 50W | |
5825-5852MHz power: 50W | |
Battery capacity | 24V 20A/H |
Battery display | Battery display |
Countermeasure capacity | Forcing to fly back |
Countermeasure distance | 500~1000m |
Countermeasure angle | 360° |
Battery life | 60 mins |
Method of charging | 29.4V charging adapter |
Measurements | L*W*H: 1085*375*220mm (including the length of the antenna) |
Weight | 19Kg |
Note: OEM customization: Module frequency band, power, and screen printing can be customized according to customers’ requirements | |
Key Industries
Airports, public security and prosecution systems, prisons, detention centers, drug rehabilitation centers, security agencies, armed forces, major venues and facilities such as those for large-scale events, concerts, important conferences, government agencies, anti-terrorism field, and regions requiring spatial confidentiality and UAV control.
The mode of driving away and forced return: 433M+900M+2.4G+5.8G
The mode of forced landing: 1.2G+1.5G+2.4G+5.8G Or 1.2G+1.5G+2.4G+5.8G+433M+900M

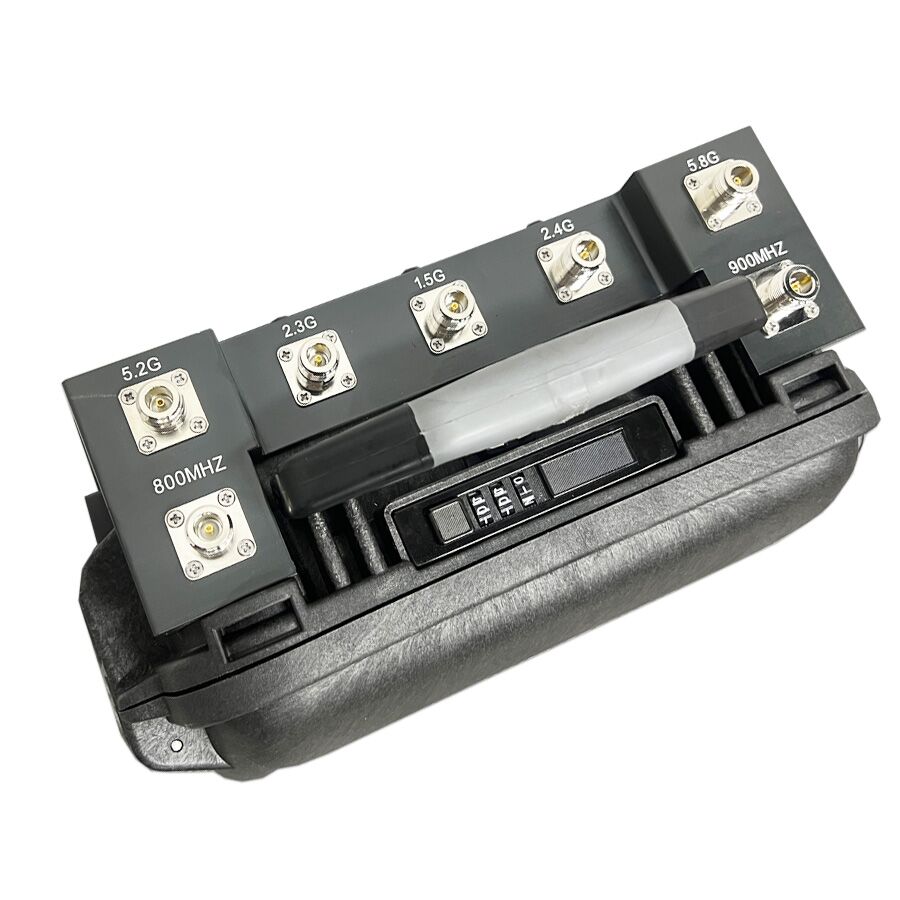

Caution: The link antenna must be installed before the power can be turned on.
