Product

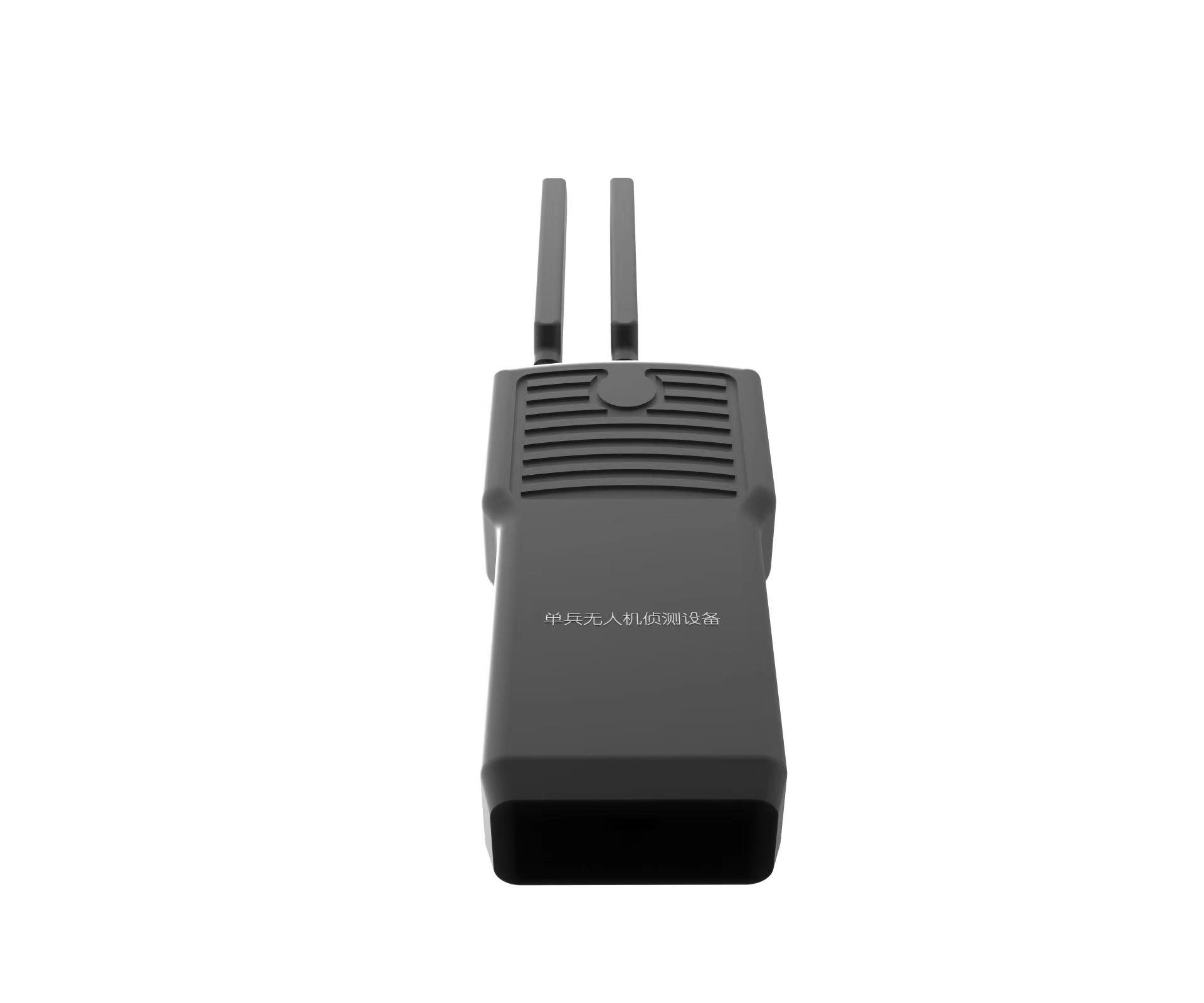

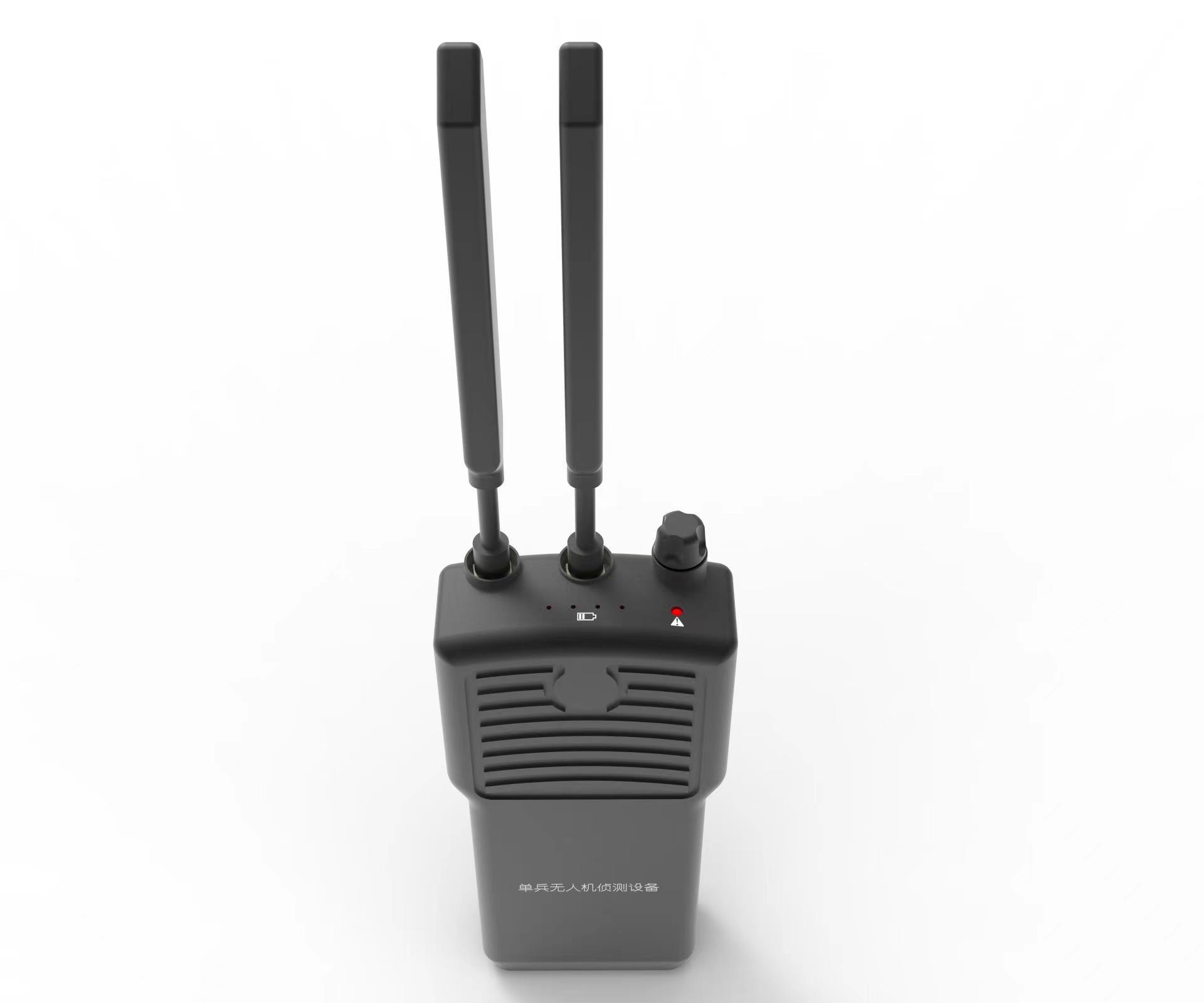

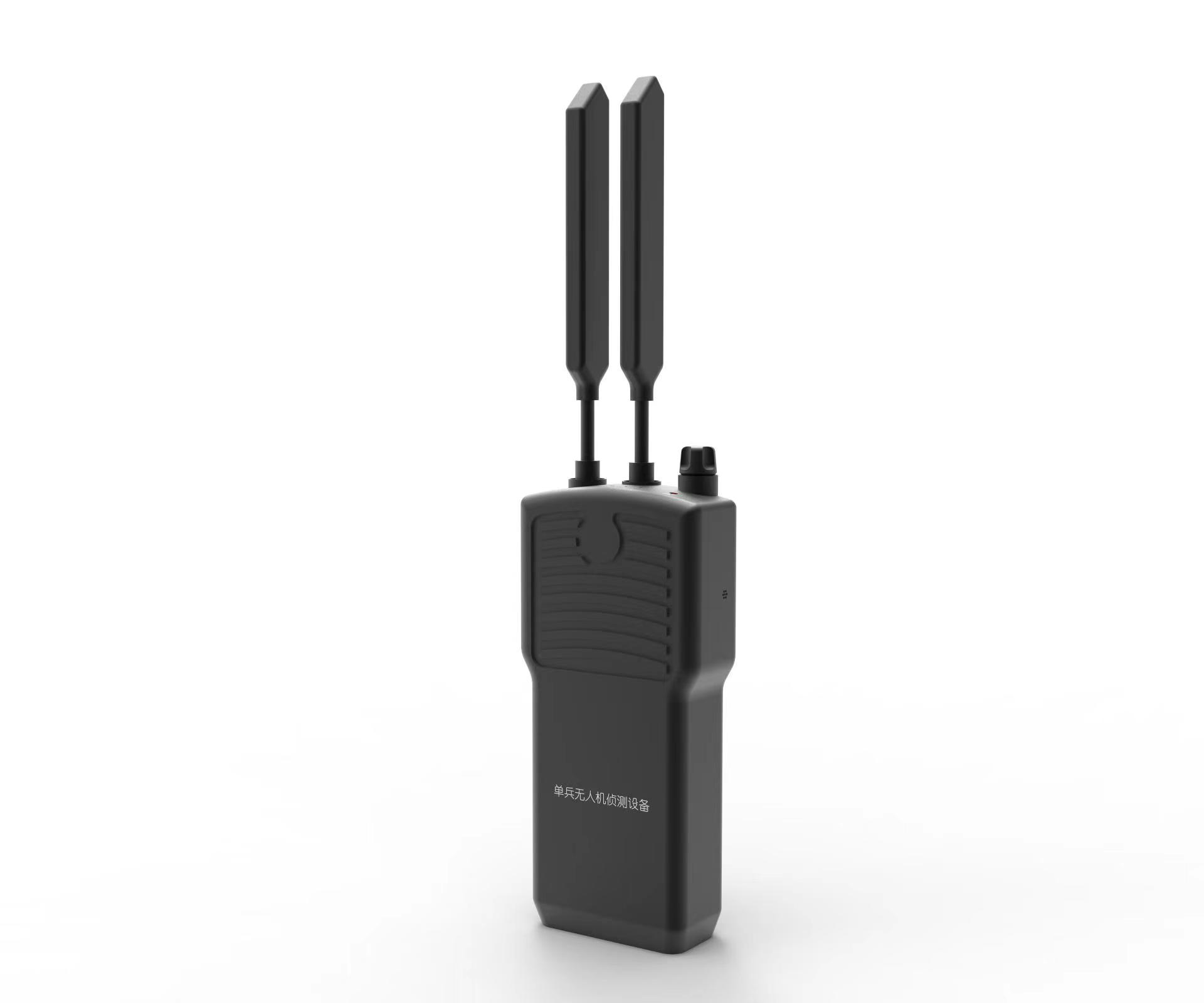

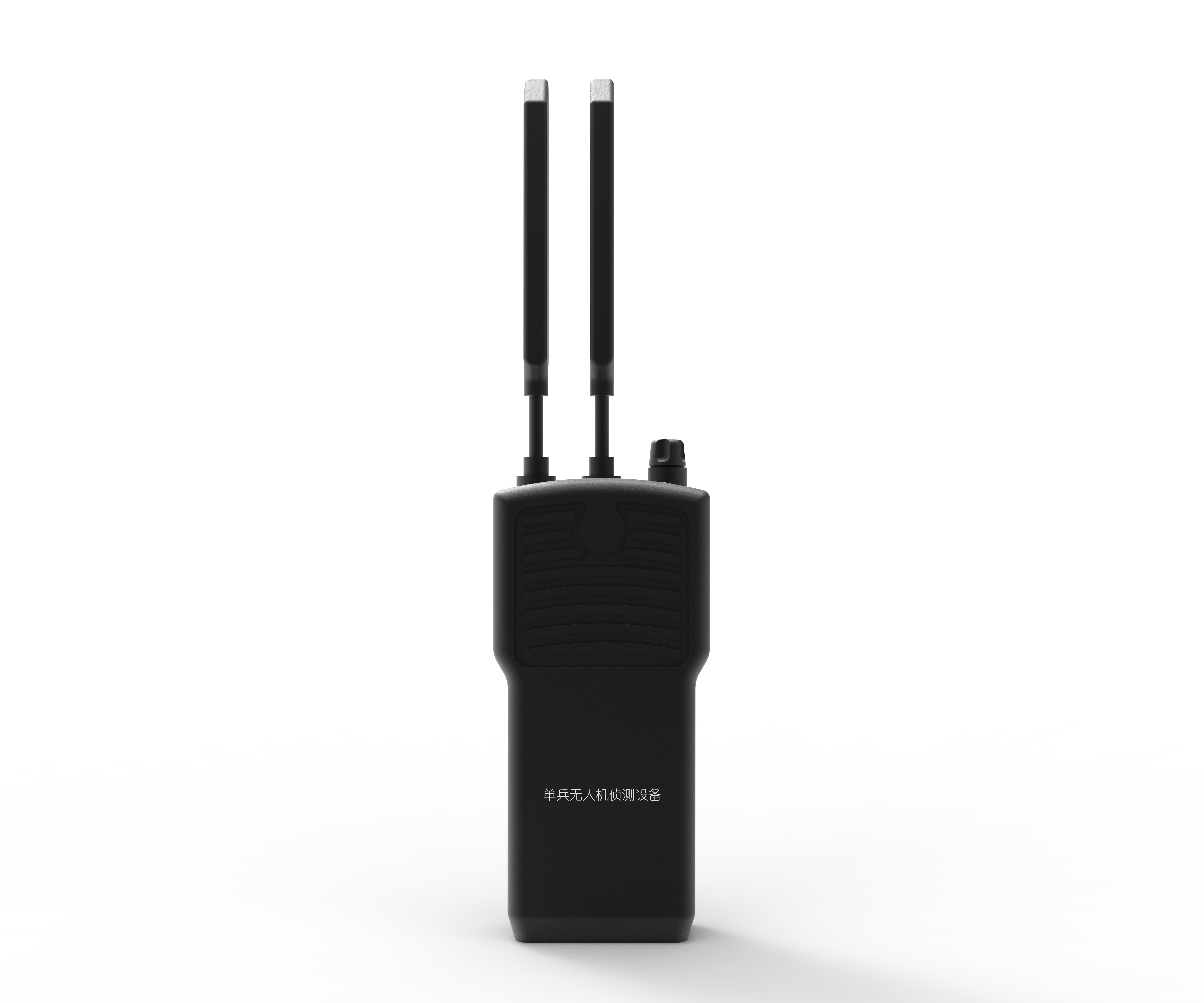

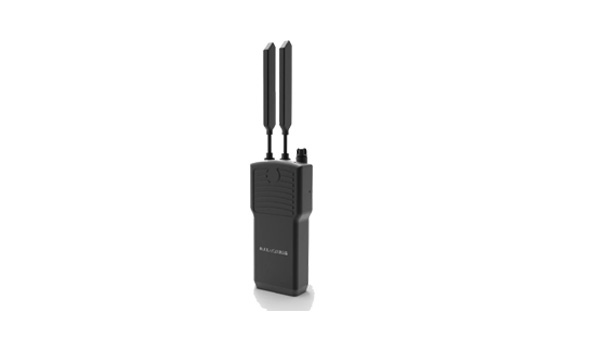

Individual UAV Detection Equipment is mainly used for detecting the UAVs in the battlefield environment. It can detect UAV signals within a radius of 3km, and can effectively detect drones such as DJI and Daotong.

And after detecting the signal, an audible and visual alarm reminder is made. The product can be designed as wearable or piggyback to provide users with situational awareness of low-altitude illegal signals without complex operation. When a suspected signal is found, it easy to camouflage or conceal.

Product Features

(1) Effectively detect common civil UAVs, remote control and control link signals, and the detection distance is long.

(2) The equipment is passive detection equipment to ensure quiet and safe operation without exposing the target.

(3) The equipment consumes little power, can replace the battery design, and can be used in the field for a long time.

(4) The product is easy to use, highly portable design, and can be used with only simple technical training.

Product Parameters

(1) Detection type: omnidirectional detection

(2) Detection signal: UAV signal, remote control signal and controller link signal detection frequency:2.4G、5.2G、5.8G

(3) Detection distance: ≥2km (unobstructed air-view and obvious electromagnetic interference)

(4) Minimum detection height: 5m (unobstructed air vision and obvious electromagnetic interference)

(5) Weight: Main unit 450g

(6) User perception: indicator light sound prompt: low battery alarm indication

(7) Size:Approx. 180x 80x 50mm (without antenna and connectable battery)

(8) IP rating: IP65

(9) Rechargeable lithium-ion battery continuous use time: 7 hours

(10) Operating temperature: -40° to +55°C

Operating Instructions

(1) Connect the detection antenna according to the mark;

(2) Turn the power switch clockwise to turn on the detection equipment;

(3) The detection host is in standby state, and the buzzer sounds and the alarm light flashes when the drone is detected;

Packing List
