1. Introduction

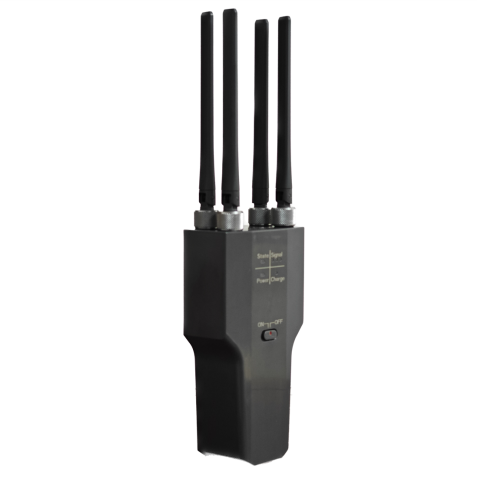

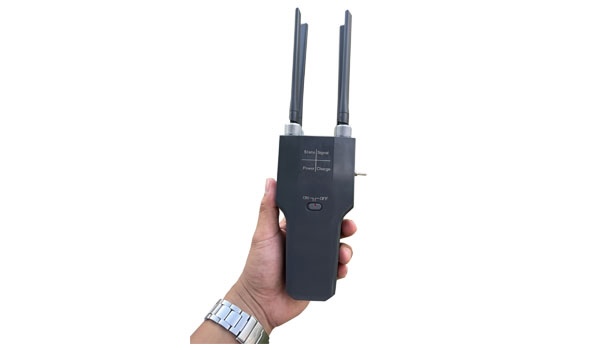

A portable handheld drone signal detector capable of effectively detecting drones, with an effective working distance of 3km, about 6 hours battery life, cover 2.4G/5.2G/5.8G bands. Identify mainstream UAVs and display signal strength.
2. Appearance

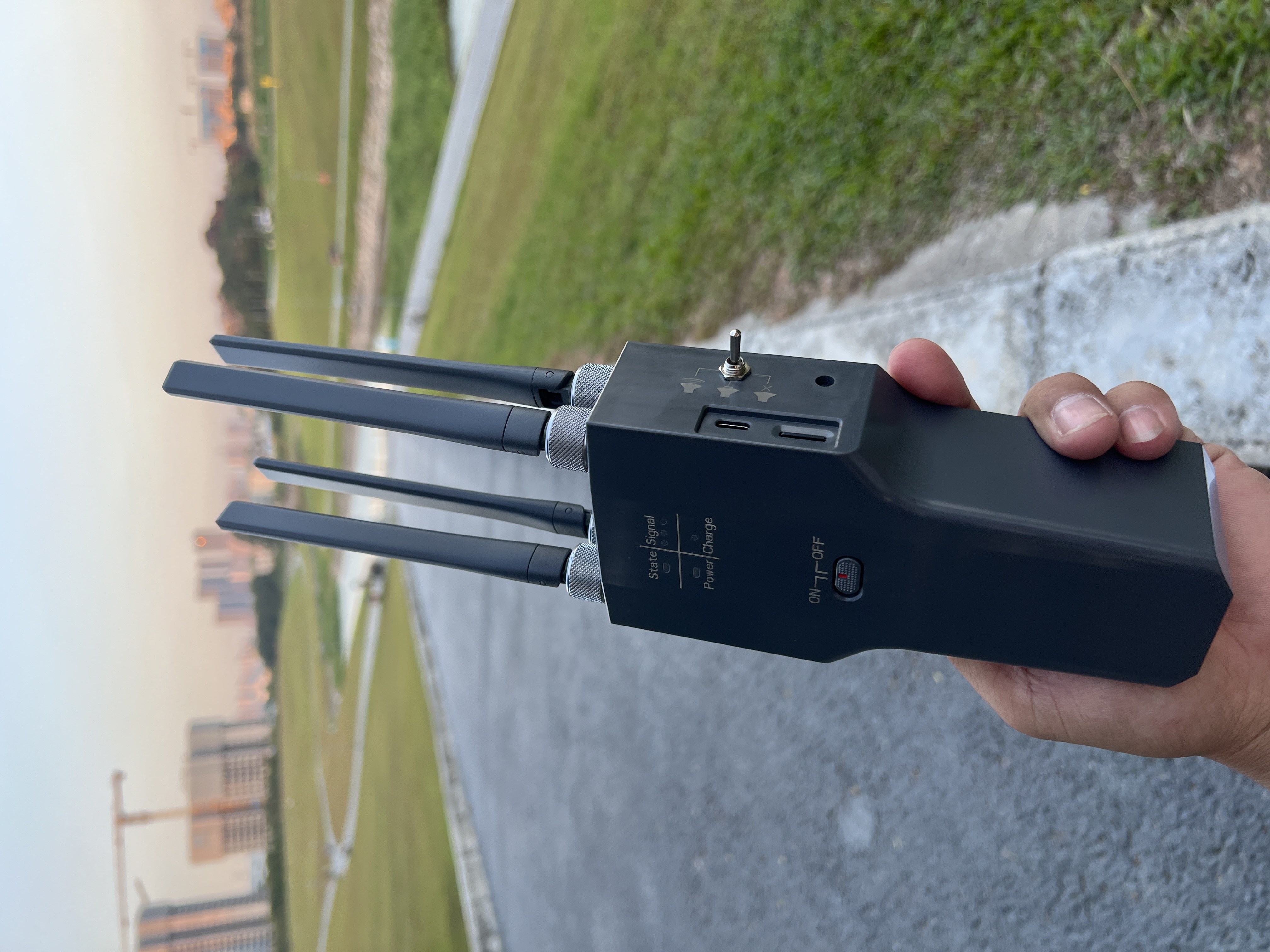

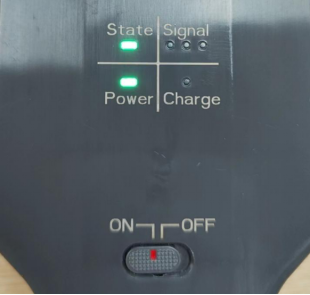

state: detection indication
power: battery indicator
signal: signal strength
charge: charge indicator
on/off:turn on/off button
3. Functions
l Signal detect: After starting up, the state light and power light turn green, which means signal detection begins. Once an UAV is detected, the state light turns red, the buzzer beeps, and signal lights up according to the signal strength.

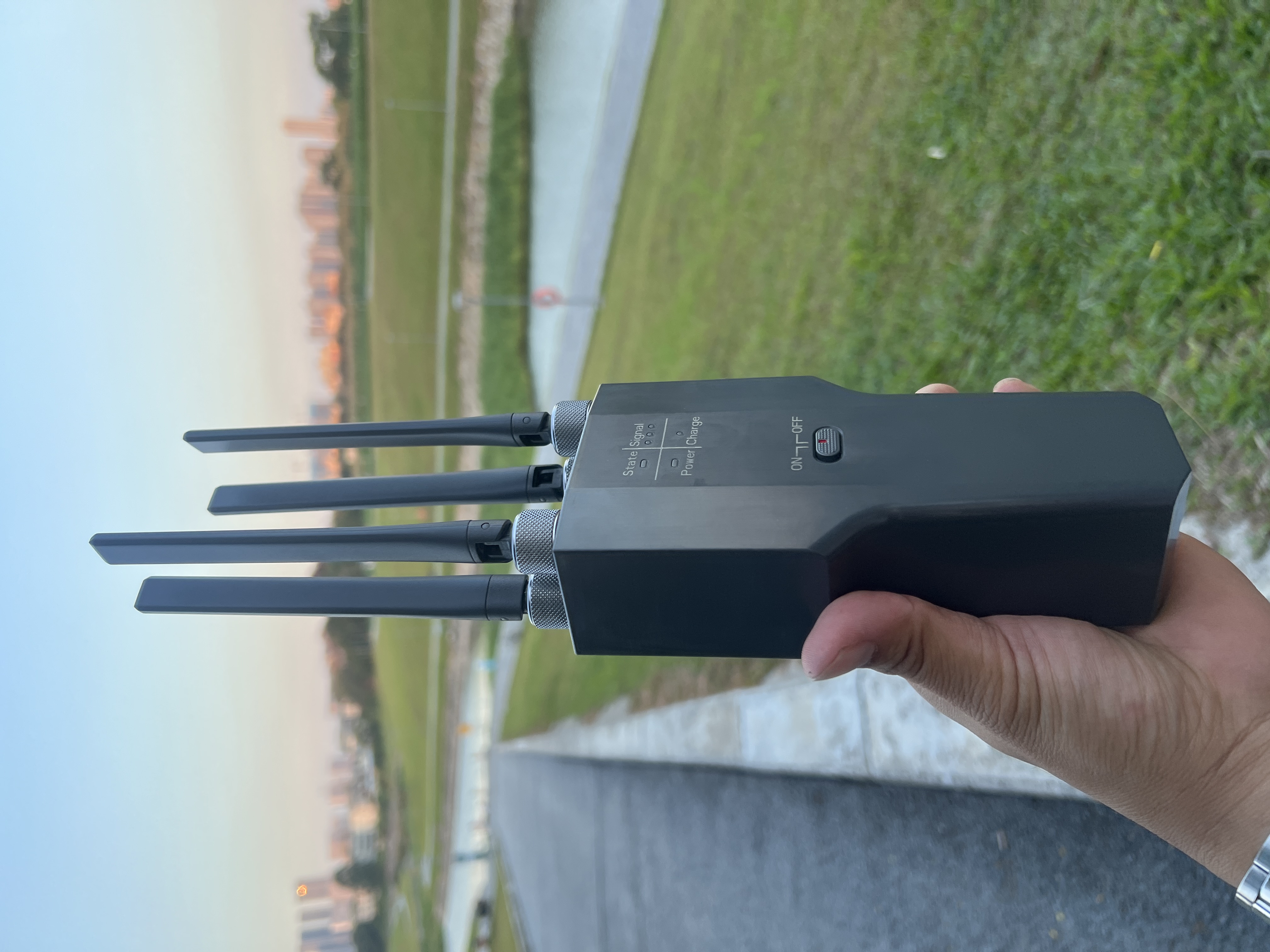

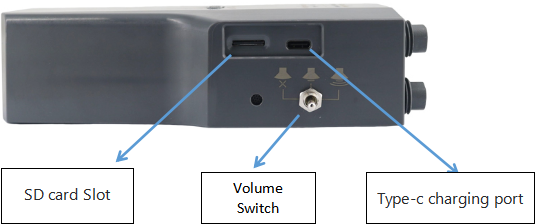

l Volume control: Use the three-way switch to control volume:
1: silent, 2: quiet, 3: loud
l Upgrade:
Operation:
1. Get an SD card(the one comes standard with the detector, or other recommended SD cards)
2. Copy the upgrade package to the SD card using a computer, then insert the SD card into the detector and reboot.
3. Wait for a while, the upgrade will start(state light flashing). The process may last 10 to 15minutes, state light will stop flashing if upgrade succeeded, or turn to red-green flashing if upgrade failed.
Tips:
1. The upgrade program will automatically check the consistency between current firmware version and the firmware version in the SD card, the upgrade won’t start if they are the same.
2. There will be several restarts during the upgrade, and the state light may stop flashing for a short time, which not means the upgrade succeed.
3. If the upgrade failed, try:
1) Restart the detector.
2) Format the SD card.
3) Change SD card.
Recommended SD cards:
Lexar 1066x U3 A2 V30 SDXCI 64/128GB; SAMSUNG EVO plus U1 A1 V10 SDXCI 64G； Kingston CANVS Select Plus U1 A1 V10 SDXCI 64G
4. Meaning of light
Led light type | Lamp signal | Meaning | Prompt tone | Duration(second |
State | Red light on | UAV detected | Beep | 10 |
Green light on | Detecting | / | / | |
Green light flashing | Upgrading | / | / | |
Red light and green light flashing | Upgrade failed | Beep | Until reboot | |
Signal | Off | No UAV detected | / | / |
1 light on | UAV detected, probably 3km away | Beep slowly | 10 | |
2 lights on | UAV detected, probably 1-3km | Beep normally | 10 | |
3 lights on | UAV detected, probably within 1km | Beep fast | 10 | |
Power | Red light on | Battery capacity is less than 10% | / | / |
Green light on | Battery is full | |||
Charge | Red light on | Charging | / | / |
Off | Battery is full of not charging | |||
Green light flashing | Charging problem |
5. Specs
Size | 84mm x 165mm x 46mm( with out antenna) 84mm x 310mm x 46mm |
Weight | 500g |
Band | 2.4Ghz, 5.2Ghz, 5.8Ghz |
Battery | 6 hours |
Effective range | Up to 3km |
Alert | Sound |
